Oi-Smart Vision

In-house Developed Machine Vision Platform Software

  • Simple Workflow

  • Real-time Visibility

  • Rich Modules

Oi-Smart Vision

Leveraging years of accumulation in algorithm technology and supported by a strong technical team, OiSmart has encapsulated thousands of versatile and powerful vision processing operators. Through multiple iterations, a robust vision analysis platform, Oi-Smart Vision, has been developed. This software platform is highly integrated, feature-rich, user-friendly, and reliable, providing comprehensive visual support for geometry feature positioning, recognition, detection, and measurement.

From the initial system architecture design, Oi-Smart Vision considered the combination and upgrade of various functional modules, ensuring the maintenance of existing functions while introducing new features during software upgrades, to maintain overall platform stability. Continuous application feedback from various industrial sites drives the constant upgrading and optimization of related algorithms, ensuring the software keeps pace with technological advancements.

PRODUCT ADVANTAGESPRODUCT ADVANTAGES
  • Feature-Rich

    The standard vision library provides comprehensive visual support from geometric feature positioning and inspection.


  • Highly Versatile Software

    Compatible with multiple operating systems.

    Flexibly configurable vision analysis tool library.


  • User-Friendly Interface

    The user interface is image-centric, eliminating the need for code writing. Icons are simple and easy to understand.


  • Easy to Operate, Learn, and Use

     The system does not require installation; it runs with a click.Enables quick workflow construction through simple drag and drop.


PRODUCT FEATURESPRODUCT FEATURES

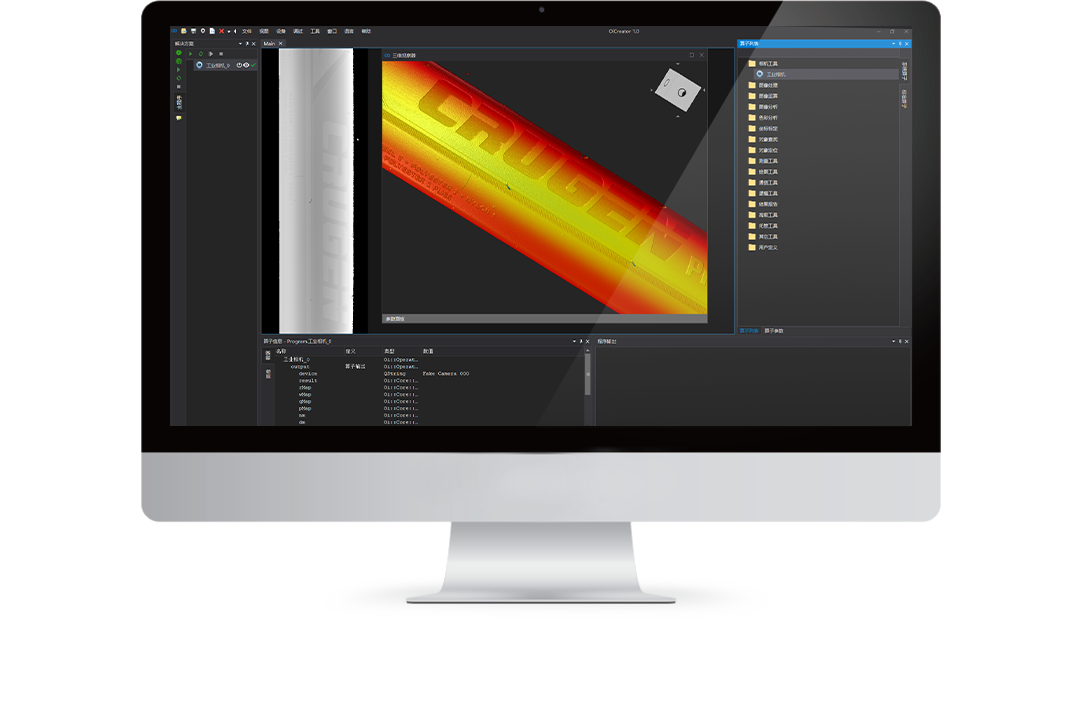

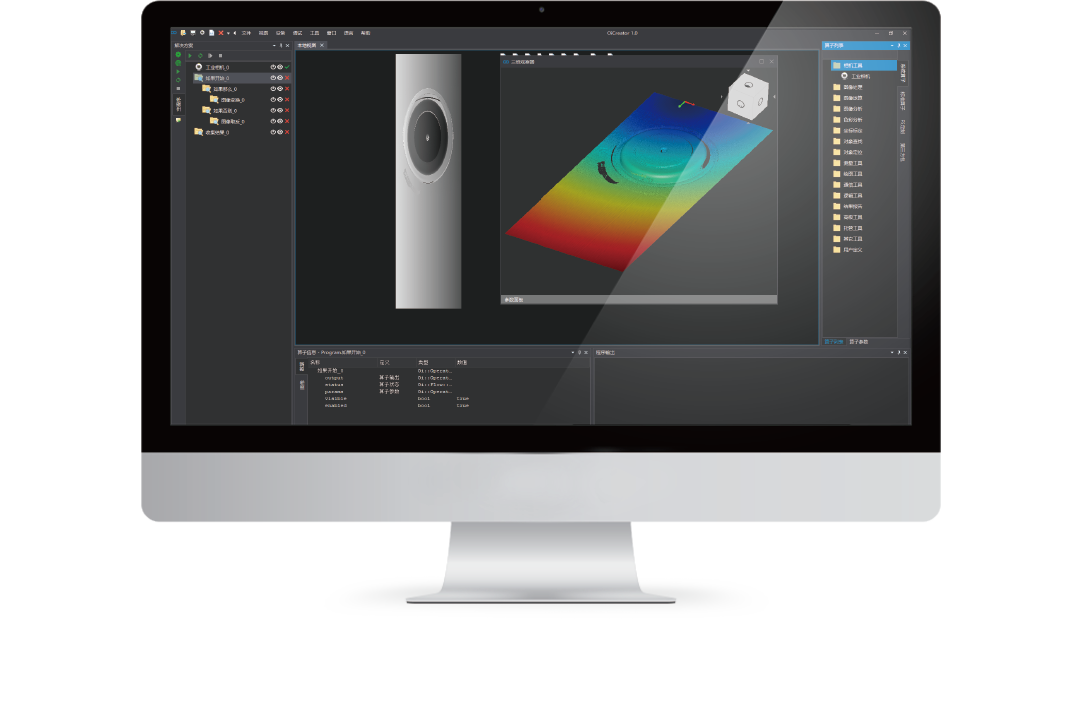

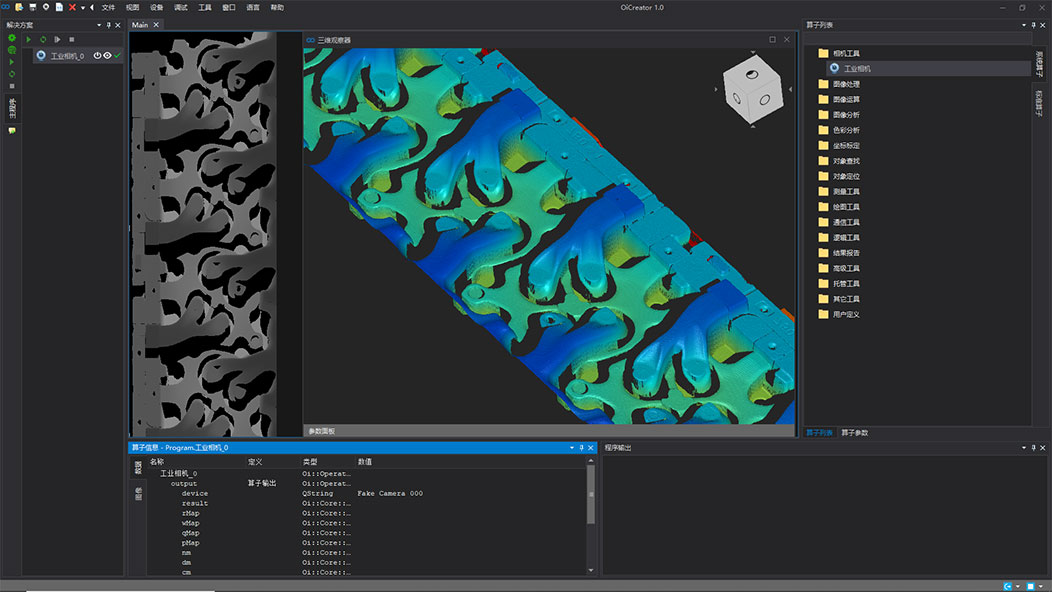

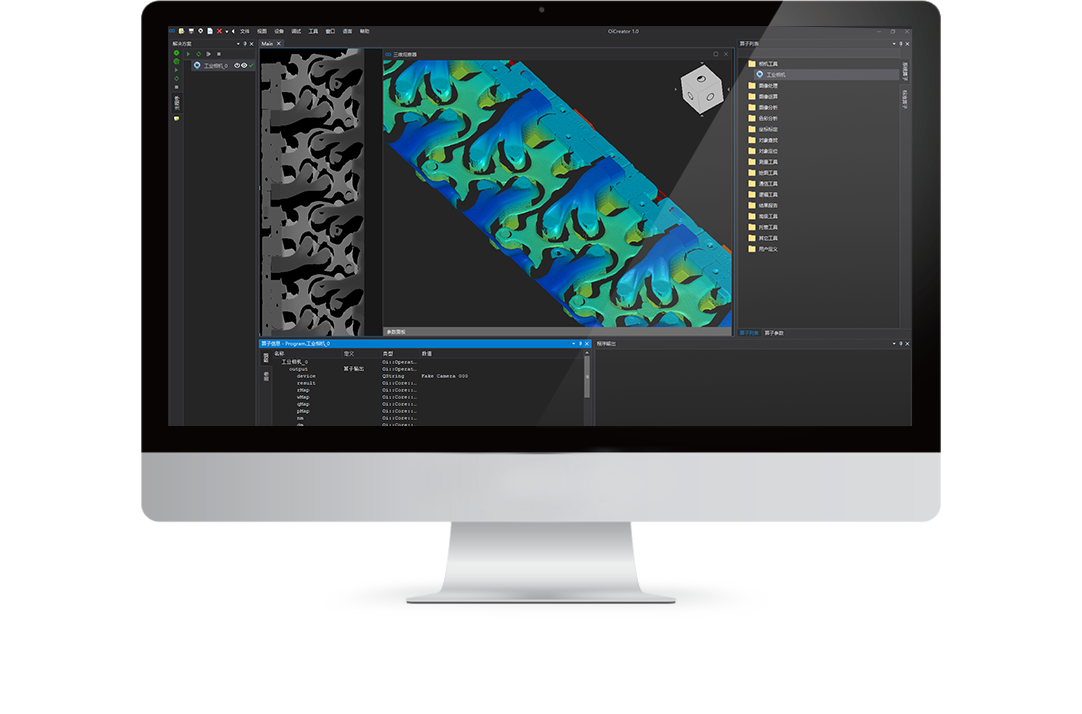

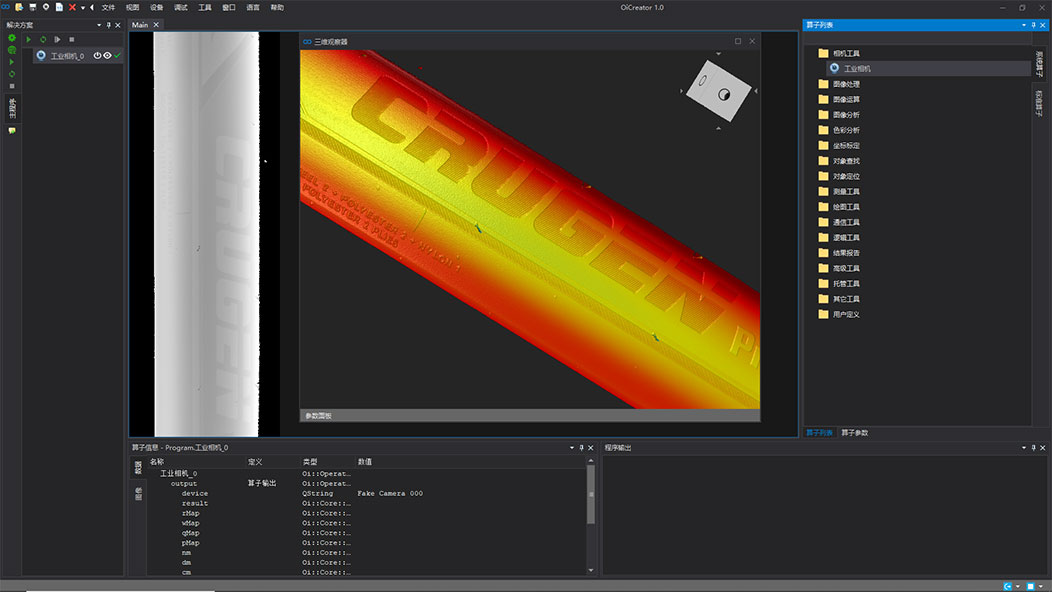

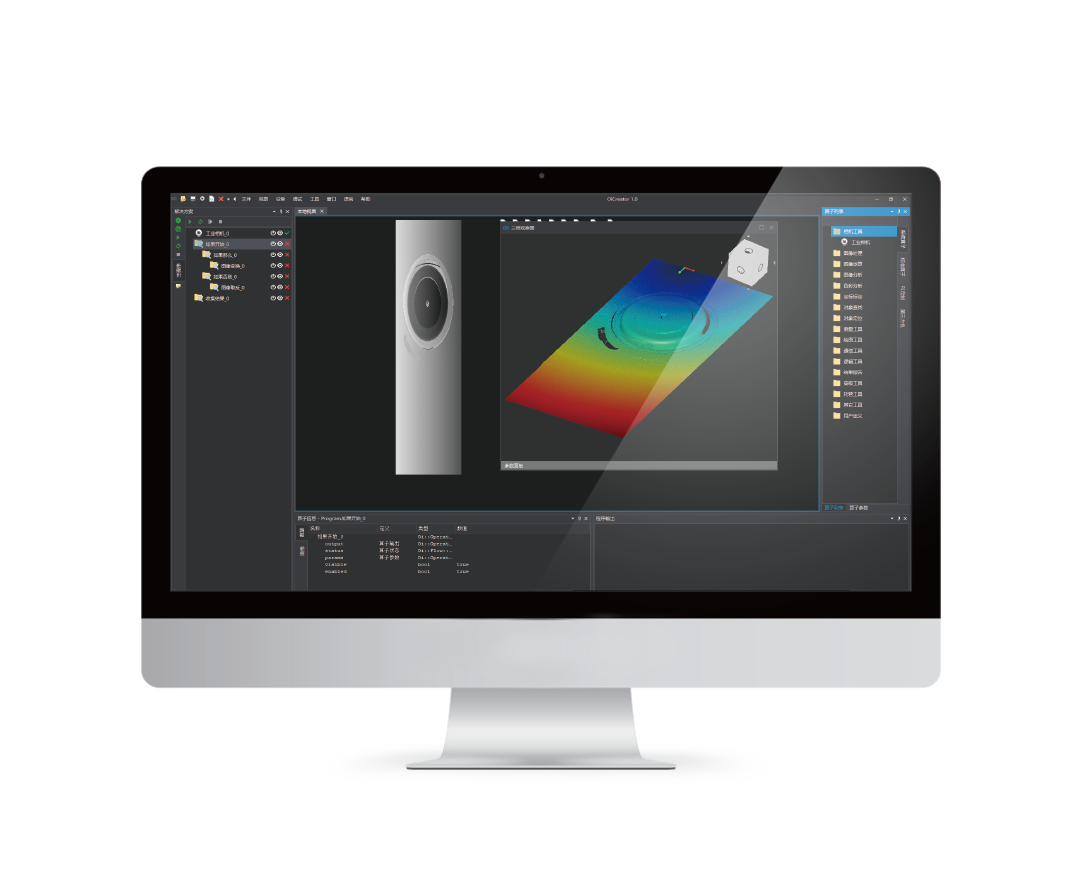

Functional Interface

3a625c4042539717d75ad66e3a5116e-1.png3a625c4042539717d75ad66e3a5116e-2.png3a625c4042539717d75ad66e3a5116e-3.png3a625c4042539717d75ad66e3a5116e-4.png




Features

Image Analysis Tools

Create various shaped selections on images for targeted area image analysis.

Quickly capture image features like contours, spots, and spacing for analysis.

Select image templates for comparative analysis between the inspection image and the target image.

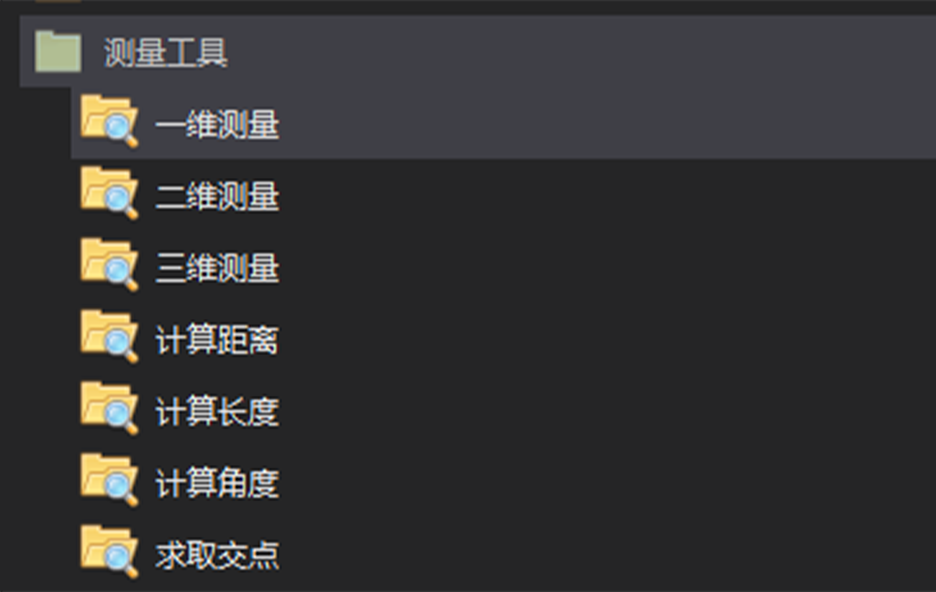

Measurement Tools

Conduct three-dimensional measurements (x, y, z axes) for comprehensive information gathering.

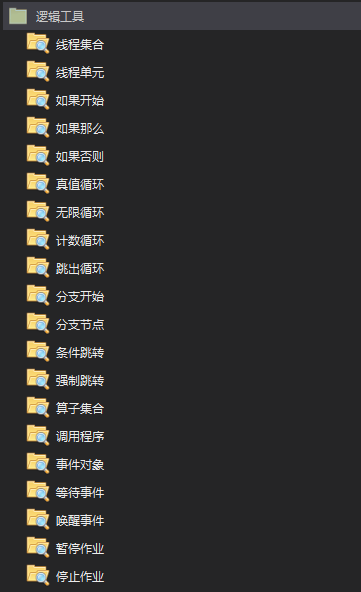

 Logic Tools

Commands for conditions, branching, loops, threads, etc., effectively execute complex programs.

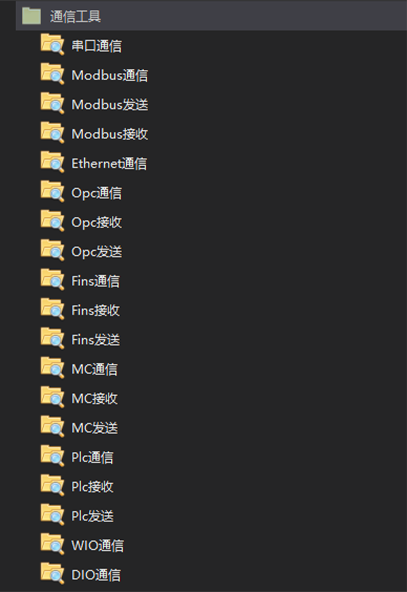

Communication Tools

A rich set of I/O interface settings and parameters support various communication methods, including serial ports and Ethernet.


APPLICATION SCENARIOSAPPLICATION SCENARIOS

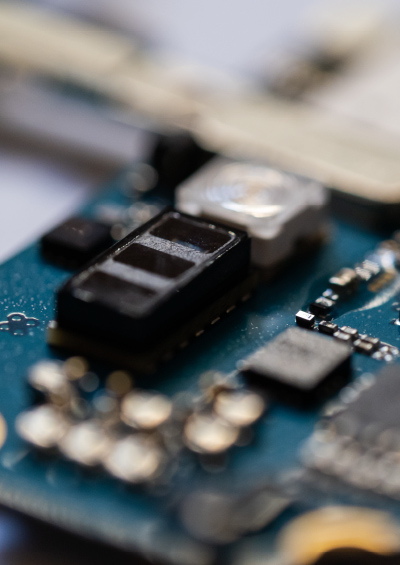

3C components

semiconductors

lithium battery modules

automotive parts

rubber tires
